cnc router cutting engraving machine 2513 4020 3020 China price

FOB Reference Price:Get Latest Price
$2,000.00 - $6,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
LT-1325
Report Suspicious Activity
Overview
Quick Details
Condition:
New
CNC or Not:
CNC
Place of Origin:
Shandong, China (Mainland)
Brand Name:
lintianzhiyuan
Voltage:
220V/380V
Dimension(L*W*H):
3100*1850*1600mm
Certification:
CE ISO FDA
Control system:
NcStudio Control System/mach3
Spindle:
3.0kw water cooling spindle
Application:
Engraving
Name:
Woodworking Cnc Router
Motor:
Stepper Motor 450B
Working area:
1300x2500mm
Spindle power:
3.0KW
Software:
Ucancam / ArtCam/TYPE3
Transmission:
XY-axis:rack Z-axis:ball screw
After-sales Service Provided:
Engineers available to service machinery overseas
Power(W):
3.0KW
Weight:
1350kg
Warranty:
24 Months
Supply Ability
Supply Ability:
200 Set/Sets per Month
Packaging & Delivery
Packaging Details
plvwood case 3300*1950*1950mm 1350kg
Port
qing dao
Lead Time :
7working days
Product Description

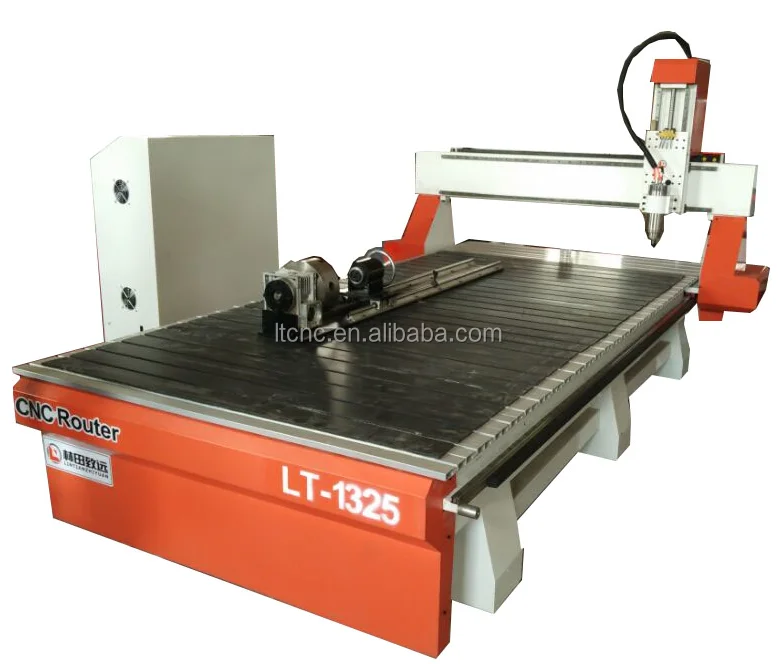

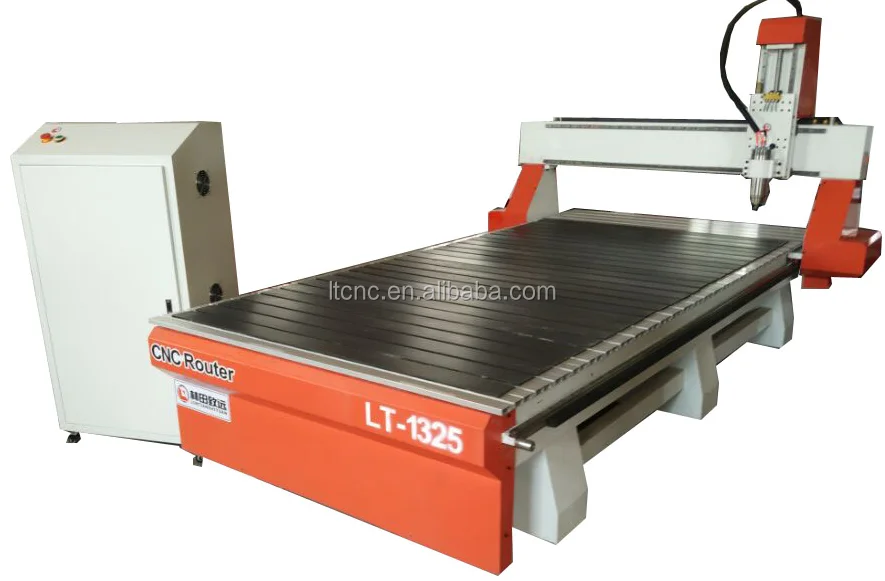

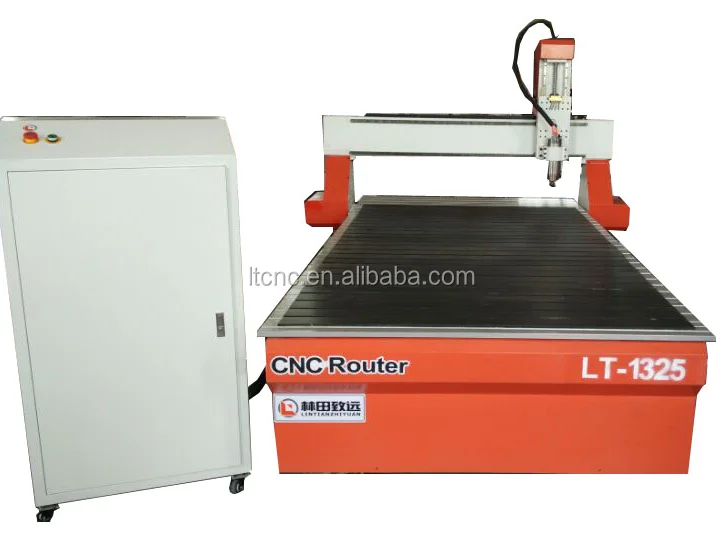

SPECIFICATIONS FOR LT-1325 CNC ROUTER MACHINE
Model
LT-1325 wood CNC Router
Invert
Fuling invert
Working area
1300(X)*2500(Y)*200(Z)mm
Max. idling speed
25m/min
Machine structure
8mm thickness welded steel tube, cast iron vertical shafts and steel gantry
Max. working speed
12m/min
Table surface
Aluminum T-slot table with PVC
Working Accuracy
<0.05/300mm
Spindle
3.0KW water cooling spindle
Instruction formate
G code *.u00 *.mmg *.plt
Spindle rotating speed
0-24000rpm/min
Working voltage
AC220V, 1 phase, 50-60Hz
Collect size
ER20
Compatible software
Type3/Castmate/Coreldraw/AutoCAD and other CAM/CAD software
Guide rail
Hiwin linear square guide rail
Control Cabinet
Independent
Driving method
X,Y axis by helicia gear rack, Z axis by TBI ball screw
Other
Tool Sensor; Oiling system; Water pump; Tool Box etc.

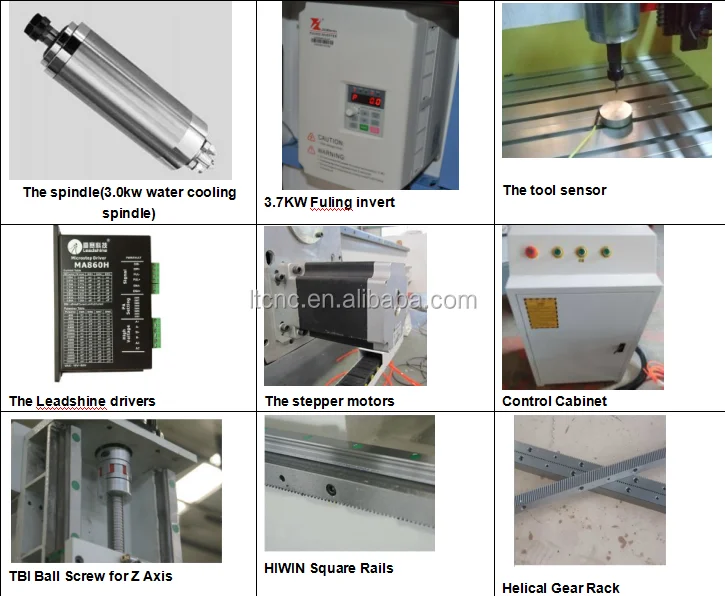

Motors and drivers
Stepper motor 450B and leadshine drivers MA860H
Optional parts
1.Rotary axis
2.water tank
3.vacuum table
Control system
Ncstudio control system

Application

Wood Processing: processing of various furniture such as door, window, cabinet, screen and so on
Advertisement: engraving and cutting various labels and number plate.
Art crafts: engraving characters of any languages and graphics on gifts and souvenirs.

Applicable meterails

wood, aluminum board, brass board, plastic, density board, MDF board, wave board, PVC, acrylic, crystal, light marble and other nonmetal materials and light metal materials..

Detailed Images

Machine Parts

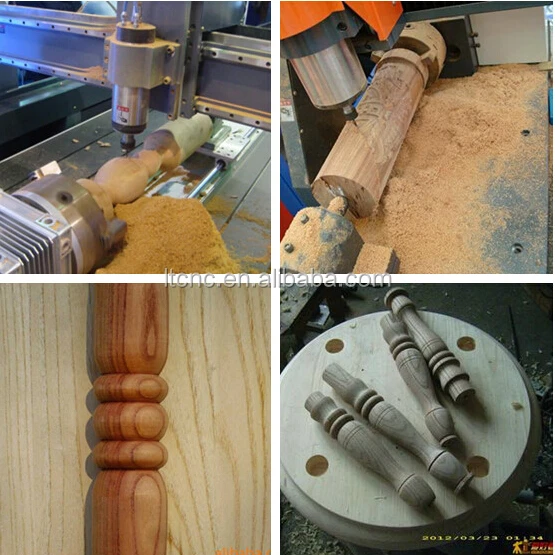

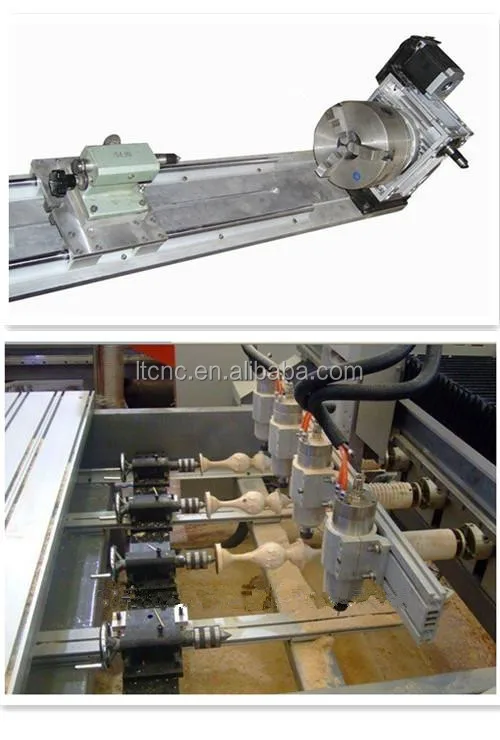

Name: rotary axis

Original:China

For processing cylindrical materials,such as round wood.
Very effcient for making wooden portrait,etc.there are 80mm,100mm,150mm,200mm....etc,for you choose

Main Features

Name:3.0kw water cooling spindle
Original: China
strong 3.0KW water-cooling spindle,fast rotating speed(0-24000rpm/min).there are 4.5kw  5.5kw spindle for you choose

Machine Parts

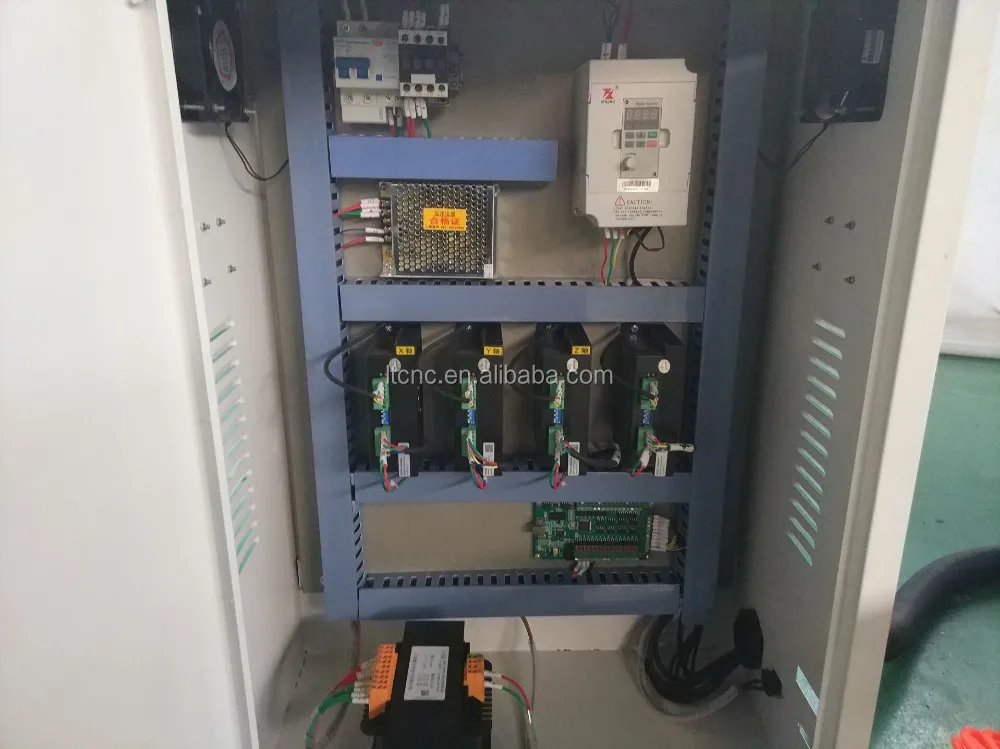

Name: control Cabinet
Original: China
Independent

Main Features

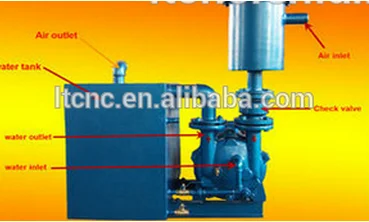

Name: 5.5KW Vacuum pump
Original: China
Used to fix the processing material,to avoid movement during processing .

Our Service

1. We will supply with the machine operation manual in English version for installing and operation.
2.Customer can come to our factory training .
3. Our warranty is 12 months counting from the date when the Machine arrives at the port of destination.
4. We will supply after service 24 hours,customer can contact us any time.
5.When some problems can’t be solved by customers, our engineer can go to door to help.

Packing & Delivery
Packaging
Size
3300mm*1950mm*1950mm
Weight
1350KG

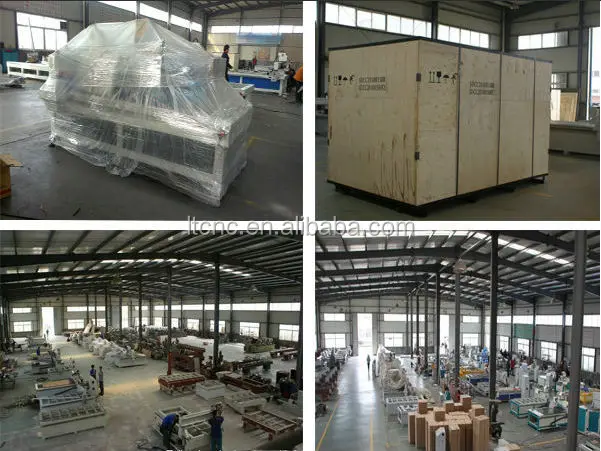

Packaging Details

The normal package is one plywood case with water-proof materials,very solid and safety packaging,suitable for long-distance transport.

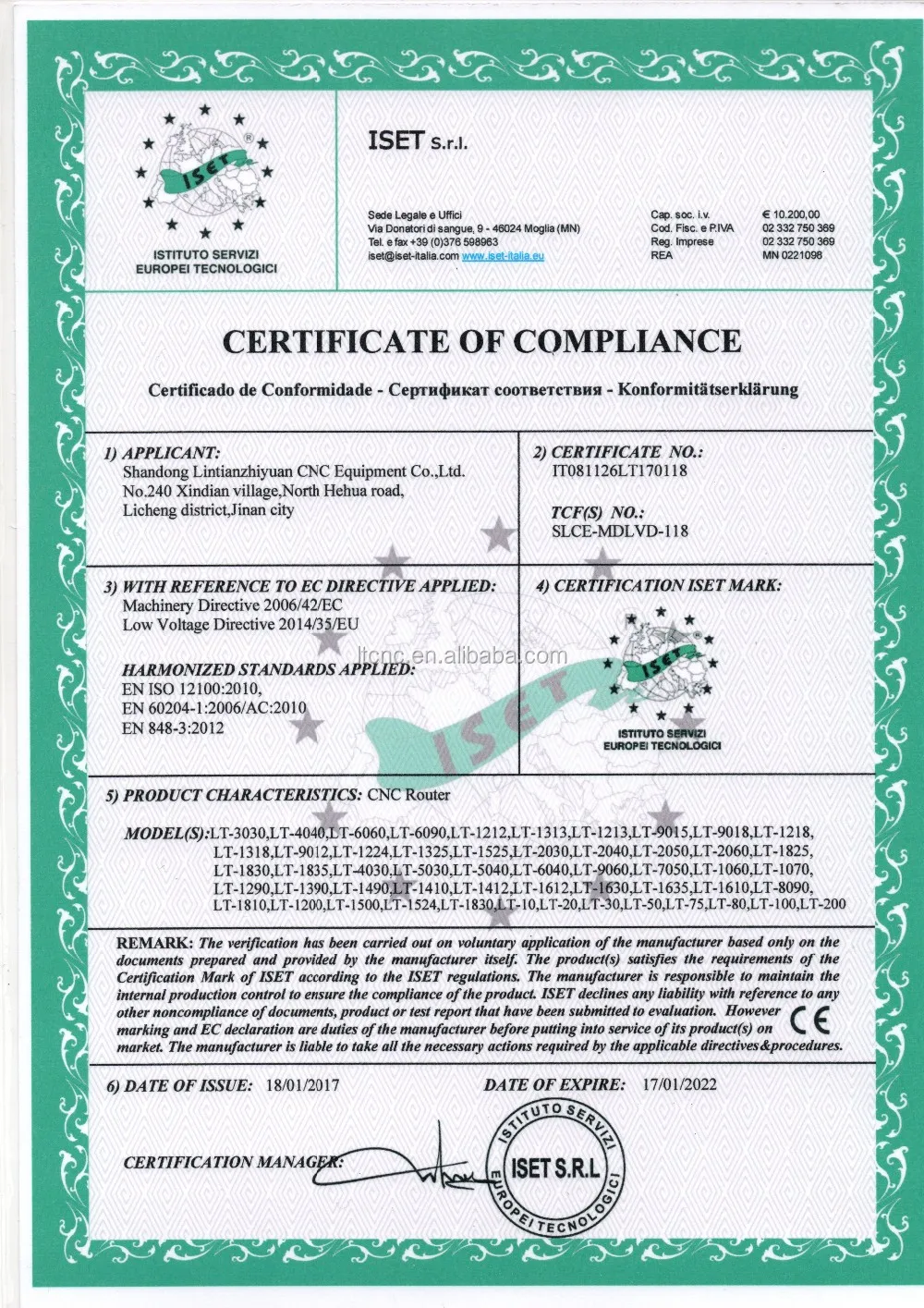

Certifications
Related Products

Products Name with link

91.8% Response Rate

Products Name with link

91.8% Response Rate

Products Name with link

91.8% Response Rate

FAQ

1) This is the first time I use this kind of machine, is it easy operate?
There are English manual or guide video that show how to use machine.
If there is still have any question, we can talk from phone or Skype.

2)Can you recommend a CNC ROUTER MACHINE to me,thanks?
Yes, In order to give you a suitable router machine, please tell me the max working
area, materials for processing and the thickness for materials processing engraving
or cutting. Then perfect suitable CNC router will be recommended.

3) If machine have any problem after I ordered it, how could I do?
Free parts send to you in machine warranty period if machine have any problem.
Free after-sales service life for machine, please feel free contact us if your machine have any problem.
we will give you 24hours service from phone and Skype.

4) MOQ ?
Our MOQ is 1 set machine. We could send machine to your country port directly, please tell us your port
name. There will be best shipping freight and machine price send to you

5)Payment terms
a. 30% by T/T in advance,70% by T/T before shipping
b. L/C is acceptable ,if the amount is big,please issue the draft for our confirmation at first.
