80W 90W 100W 130W co2 laser tube available,cnc laser cutting machine,laser engraver LT-1410

FOB Reference Price:Get Latest Price
$3,600.00 - $5,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
1410
Power(W):
100
Report Suspicious Activity
Overview
Quick Details
After-sales Service Provided:
Online support, Engineers available to service machinery overseas
Applicable Material:
Acrylic, Crytal, Glass, Leather, MDF, Paper, plastic, Plexiglax, Plywood, Rubber, Wood
Laser Type:
CO2
Cutting Area:
1400*1000mm
Cutting Speed:
0-700mm/s
Graphic Format Supported:
AI, DST, DWG, DXF, LAS, PLT
Application:
Laser Cutting
Condition:
New
Cutting Thickness:
0-3.5mm
CNC or Not:
Yes
Cooling Mode:
Water Cooling
Control Software:
RdWorksV8/Laser Cut6.1
Place of Origin:
Shandong, China (Mainland)
Brand Name:
Lintianzhiyuan
Certification:
CE, ISO
Warranty:
2 Years
Model:
LT-1410
Working area:
1400*1000mm
Laser power:
60w/80w/90w/100w/150w
Motors and drivers:
Stepper motors and Leadshine driver M580
Work table:
Blade table, Honeycomb table, up-down table
Working voltage:
AC110V/220V/380V 50Hz/60Hz
communication interface:
USB&PC
Max cutting speed:
700mm/s
laser tube:
co2 laser tube RECI
Supply Ability
Supply Ability:
100 Set/Sets per Month
Packaging & Delivery
Packaging Details
One plywood case with water-proof materials;1880*1440*1220mm;550KGS.
Port
Qingdao,Tianjin,Shanghai
Video Description
Product Description

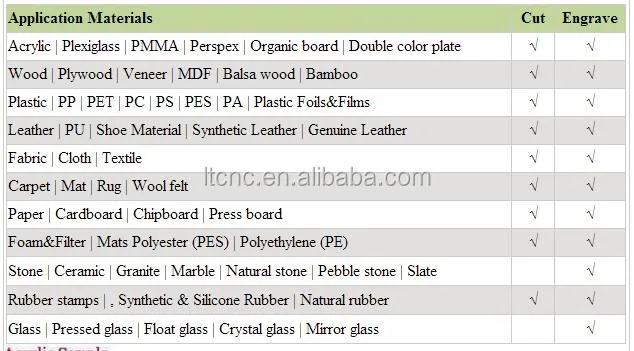

Product Application

For engraving:All non-metals
For cutting:Most non-metals,such as Acrylic,PVC,rubber sheet,palstic,crystal,galss,bamboo,plywood,
oxhorn,figuline,leathe,cloth,etc.

SPECIFICATIONS OF CO2 LASER CUTTING ENGRAVING MACHINE 1410
Description
LT-1410 co2 laser cutting engraving machine
Transmission system
Taiwan Hiwin square rails and Fulong belt
Working area
1400*1000mm
Design software
CorelDraw,AutoCAD,Photoshop,etc
Laser power
60W 80W 90W 100W 130W 150W
Picture format supported
PLT,DXF,BMP,AI,PGN,TIF,etc
Working table
Blade table or Honeycomb table
Control system
Ruida RDC6442S or
Leetro MPC6585 controller
Laser type
Co2 laser tube
Software
Laser Cut6.1
Engraving speed
0-1000mm/s
Max. scanning precision
0.0254mm
Cutting speed
0-700mm/s
Position precision
<0.01mm
Laser tube cooling
Water cooling
Communication interface
USB
Driver mode
Stepper motor and Leadshine driver M580
Mirror and Lens
imported form Singapore

Main Features

a. Can be installed with laser tube with different laser power, such as 60w, 80w,90w,100w,150w
b. Multi-function; engraving and cutting non-metals with high precision
c. Laser head, high speed, more precision, it is metal, not consumable
d. Fireproof window, more security
e. Laser tube is separated with the working table, this makes sure laser tube safety and laser parts clean
f. Lens and mirrors imported form Singapore with high quality
g. Stable stepper motor improves the cutting precision and speed

Detailed Images

Machine Parts

Name: laser head

Original: China

High quality laser head ,not consumable parts,can be used for a very long time.

Machine Parts

Name: Transmission system
Original: China
Hiwin square rails & Fulong belt,make sure higher accuracy and better working performance.

Machine Parts

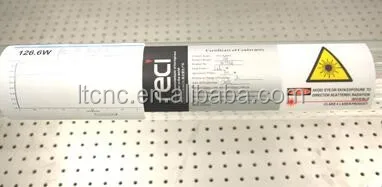

Name:Reci co2 laser tube
Original: China
China best co2 laser tube,various laser power,high efficiency laser tube.

Main Features

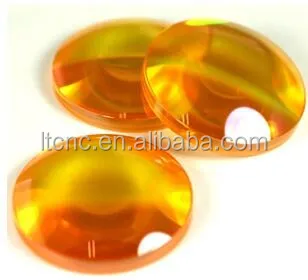

Name: Lens
Original: Sinapore
Imported from Sinapore,high quality.

Our Service

Technical service

1) 24 hours technical support
2) Lifetime maintenance free of charge
3) Free training course at our factory
4) Manual of video with machine tech the client how to set up, test, operate and maintain.

Warranty

24 months for machine

 9 months for laser tube

Packing & Delivery
Packaging
Size
208 (L) * 154 (W) * 122 (D)cm
Weight
600KG



Packaging Details
The normal package is one plywood case with water-proof materials.The co2 laser tube is packaged separately.
Certifications
