2mm stainless steel co2 laser cutting machine High technology 1325 1390 flatbed cnc co2 laser cutting hybrid machine 150

FOB Reference Price:Get Latest Price
$4,500.00 - $10,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
1325
Report Suspicious Activity
Overview
Quick Details
Condition:
New
CNC or Not:
CNC
Place of Origin:
Shandong, China (Mainland)
Brand Name:
lintianzhiyuan
Voltage:
220V/380V
Dimension(L*W*H):
3650*1910*1050mm
Certification:
CE ISO FDA
Warranty:
24 Months
Control system:
Ruida RDC64425 controller
Motor:
Stepper Motor 450A
Working area:
1300*2500mm
Software:
RDWorks V8
Transmission:
Taiwan HIWIN square rails and Fulong belt
Driver:
Leadshine(M580)
laser tube cooling:
water cooling
engraving speed:
0-1000mm/s
cutting speed:
0-700mm/s
working table:
Honeycomb table
After-sales Service Provided:
Engineers available to service machinery overseas
Power(W):
90w-100w
Weight:
1000kg
Supply Ability
Supply Ability:
200 Set/Sets per Month
Packaging & Delivery
Packaging Details
plvwood case
Port
qing dao
Product Description

Main Features

1. Multi-function: co2 laser cutting machine can cut non-metals.
2. With RECI S8 (150w-180w) laser tube, very high quality, longer lifetime, more than 10000 hours.

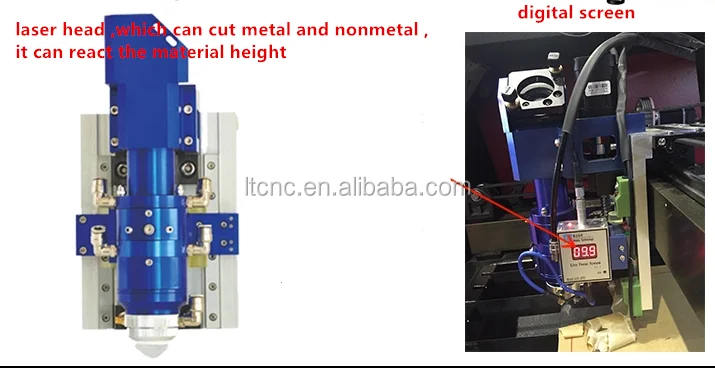

3. With Ruida Metal laser head with auto-focus function; make sure higher cutting precision.
4. Very heavy machine body,; and HIWIN square rails, more stable and higher accuracy.

SPECIFICATIONS FOR LT-1325 laser machine
Cutting area
1300*2500mm
Min. shaping character
English 1.0*1.0mm
Laser power
S8 150W Reci
Graphic format supported
BMP, PLT, DST, DXF, AI etc.
Laser type
Co2 sealed laser tube
Software supported
TAJIMA, CorelDraw, Photoshop, AutoCAD
Machine body
Welded heavy duty machine body
Driving system
Stepper motor
Resetting positioning accuracy
±0.01mm
Water chiller
CW5200
Power supply
220V 50/60HZ
Cooling mode
Water cooling

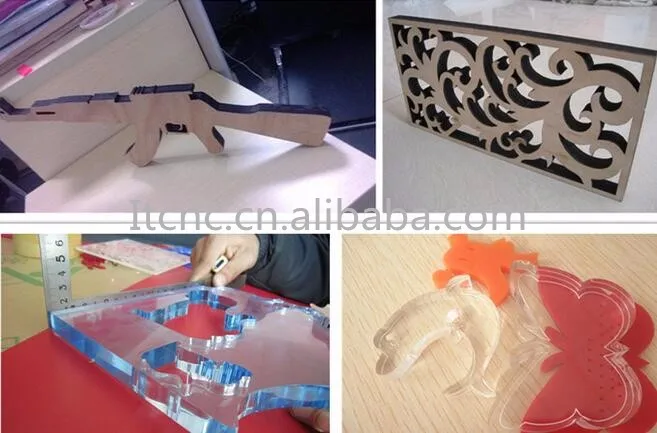

Product Application

a. stone: marble,granite, white marble etc.
b.art crafts: wood,bamboo,elephant's tusk,bone,leather,marble,sea shell etc.
c. advertisement:double color board,acrylic engraving and cutting,label engraving,crystal etc.
d. model industry:sand table construction model,plane model etc.
e. packing:rubber engraving,plastic,doubling plate,die board cutting etc.
f. leather and cloth process:compound leather,man-made leather,fabric,fur ,toy etc.
g. other industry : marble,granite,glass,crystal engraving,paper/greeting card cutting etc.

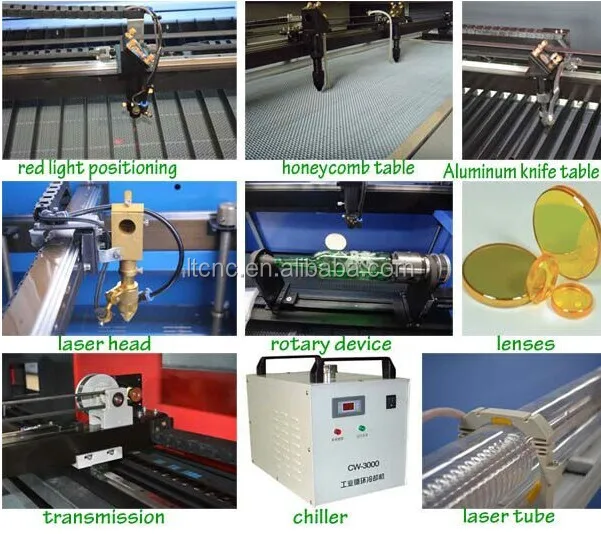

Detailed Image
Certifications
Our Service

Technical Support

1. Professional technical suggestion before you order a machine
2. Professional instruction for the operation of machine
3. Completed machine manual and CD will be provided together with machine
4. 24-hours technical support by email or calling

Warranty

1. 24 months for machine and 9 months for laser tube

2. we will provide the consumable parts at cost price after warranty period

Packing & Delivery
Packaging
Size
377cm(L) * 202cm(W) * 131cm (D)
Weight
550KG



Packaging Details
The normal package is one
plywoodcase with water-proof materials

;co2 laser tube packaging separatedly.

Machine will be shipped to port within 7 -12 working days after receiving payments
