min advertising 6060 cnc router desktop cnc lathe 3.0kw wood 3d cnc engraving machine

FOB Reference Price:Get Latest Price
$1,700.00 - $2,800.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
LT-6060
Report Suspicious Activity
Overview
Quick Details
Condition:
New
CNC or Not:
CNC
Place of Origin:
Shandong, China (Mainland)
Brand Name:
Lintianzhiyuan
Voltage:
220V/380V
Dimension(L*W*H):
1400*1100*1350MM
Certification:
CE ISO FDA
Warranty:
2 Years
After-sales Service Provided:
Video technical support
Spindle power:
1.5kw
Control system:
NcStudio Control System
Spindle:
1.5KW Water-cooled Spindle
Transmission:
Ball Screw
Motor:
Stepper Motor 450B
Software:
Artcam/Type3
Driver:
Leadshine
Inverter:
Fuling
Table style:
Aluminum T-slot table with PVC
Working speed:
<7000mm/min
Power(W):
50-60HZ
Weight:
350KG
Supply Ability
Supply Ability:
100 Set/Sets per Month
Packaging & Delivery
Packaging Details
plywood cases with water-proof materials.
Port
QINGDAO/SHANGHAI/TIANJN
Product Description
SPECIFICATIONS OF CNC ROUTER 6060
Description
LT-6060
Motors and Drivers
86BYG-450B stepper motors and MA860H leadshine driver
Working area
600*600*200mm
Control system
Ncstudio control system
Whole structure
Cast-iron struction
Working accuracy
<0.03/300mm
Table style
Aluminum T-slot table with PVC
Working speed
<7000mm/min
Guide rail
Round guide rail
Traveling speed
0-7000mm/min
Driving method
Taiwan Original TBI Ball screw
Instruction formate
G code*.u00*.mmg*.plt
Spindle
1.5kw water cooling spindle
Working voltage
AC220V Single phase,50-60Hz
Collect size
ER16
Standardoftware
Artcam 2010
Spindle speed
0-24000RPM
Compatible software
Type3/Artcam

Main Features

1. Whole cast iron machine structure, tight and strong, can ensure machine runs smoothly.

2. Best choice for wood, advertising materials, with dust proof on all three-axis, it can stop dust away from the rails and ball screw and to keep the machine working for longer time.

3.Imported high precision HIWIN rails linear bearings, smooth movement to ensure the machine tools high precision.

4. Low noise, water cooling system, high rotated speed 24000RPM, can realize only diameter 1mm tools engraving on the hardness materials.

5. Processing metal materials can add water cooling system, which can cool the tools, avoiding the high temperature breaking tools.

6. Good software compatibility can compatible with Artcam/Type3/ Ucancam/JDPaint such as CAD/CAM, 2D/3D processing more convenient to use.

Sample Images

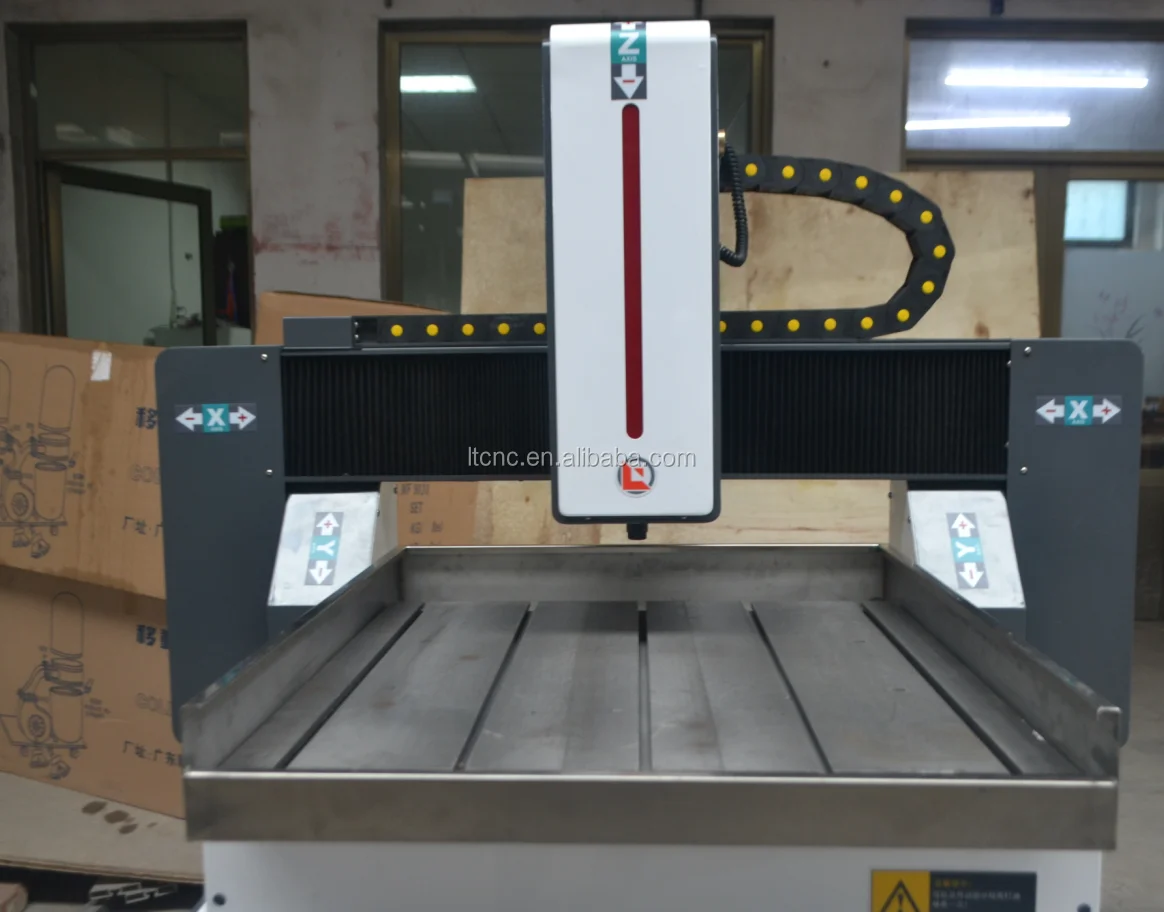

Detailed Images
Our team


Packing & Delivery
Packaging
Size
150(L) * 120 (W) * 163 (D)mm
Weight
370kg



Packaging Details
The normal package is one plywood case with water-proof materials.

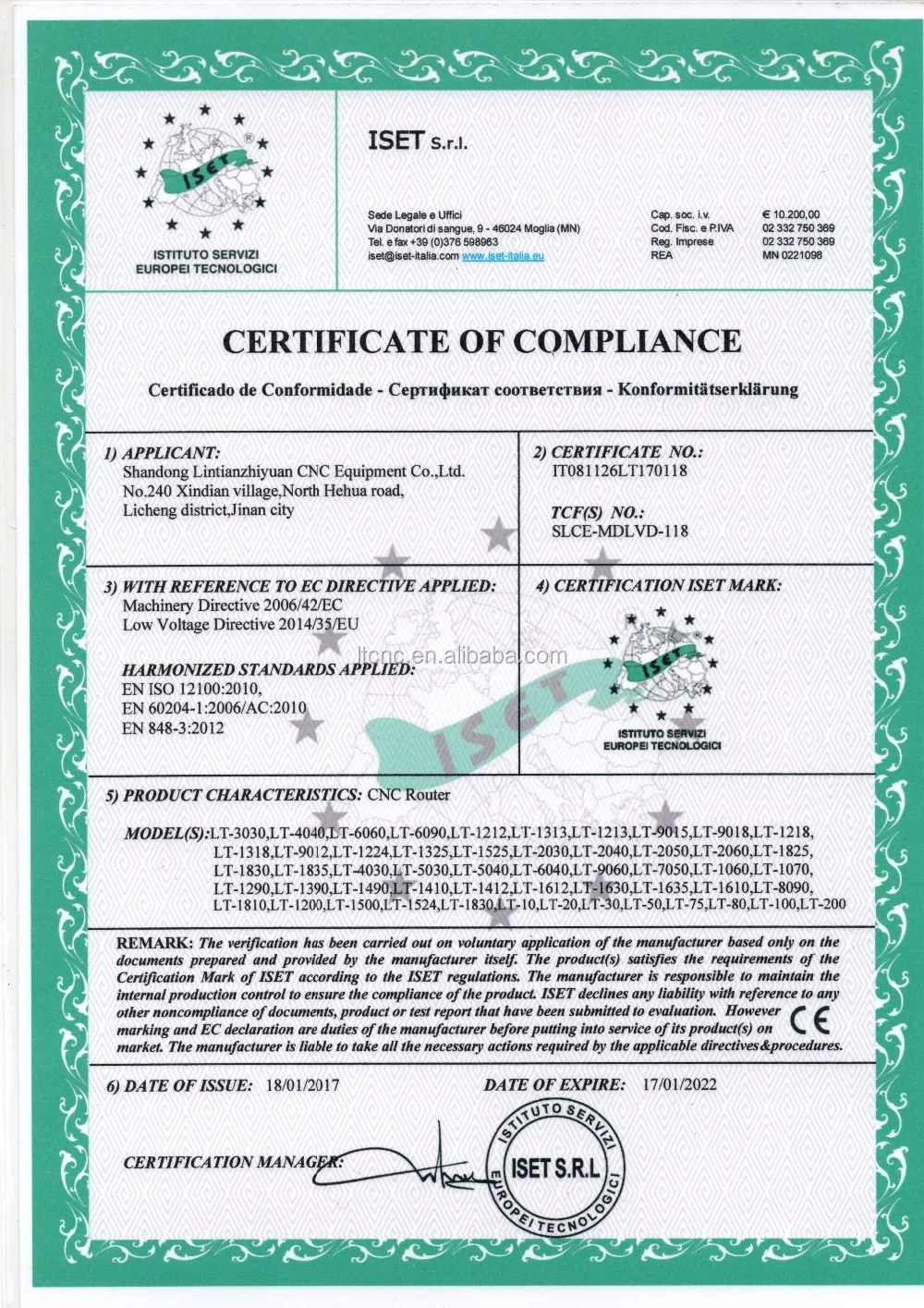

Certification
