mdf laser cutting machine / Co2 laser cutting / 90wlaser engraving machine

FOB Reference Price:Get Latest Price
$2,300.00 - $3,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
1390
Lead Time:
Quantity(Sets) 1 - 3 >3
Est. Time(days) 15 Negotiable
Report Suspicious Activity
Overview
Quick Details
Condition:
New
CNC or Not:
CNC
Place of Origin:
Shandong, China (Mainland)
Brand Name:
lintianzhiyuan
Voltage:
220V/380V
Dimension(L*W*H):
1880*1440*1220mm
Certification:
CE ISO FDA
Warranty:
24 Months
After-sales Service Provided:
Video technical support, Engineers available to service machinery overseas
Control system:
Ruida RDC 6445G control system
Working area:
1300*900mm
laser power:
90w
Software:
Rdworks V8 software
Transmission:
Taiwan HIWIN square rails and Fulong belt
Product name:
laser engraving cutting machine
working table:
Honeycomb table
laser type:
Co2 laser tube
Power(W):
90w
Weight:
550kg
Supply Ability
Supply Ability:
200 Set/Sets per Month
Packaging & Delivery
Packaging Details
plvwood case
Port
Qing dao
Lead Time :
Quantity(Sets) 1 - 3 >3
Est. Time(days) 15 To be negotiated
Product Description

Product Application

1. Marble industry
Image and character engraving on the surface of marble.
2. Advertising industry
Engraving and cutting on advertising materials such as
acrylic, double-color board and so on.
3. Leather and clothing industry
Engraving and carving on leather and fabric.
4. Art & Craft industry
Engraving and cutting on paper, wooden packing box, bamboo craft, leather, shell, ivory and so on.
5. Model industry: cutting on architectural model, aviation and navigation model, and wooden toys.
6. Packaging industry: engraving and cutting of printing rubber plate, and cutting of sandwich plate and die board cutting.
7. Decoration industry: engraving and cutting on electric products and relevant materials.

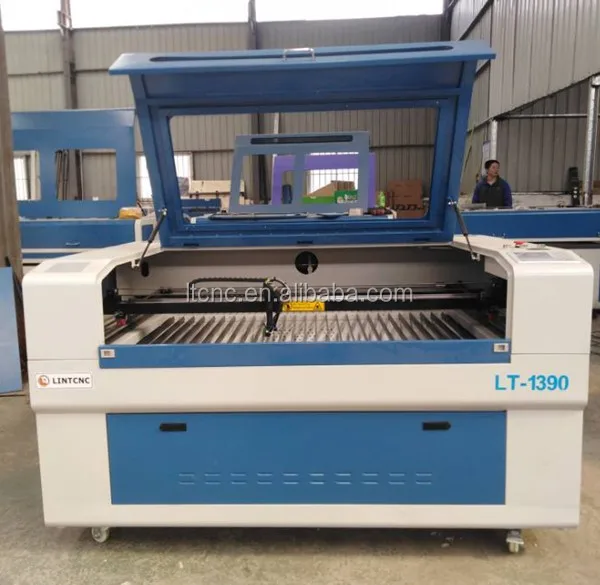

SPECIFICATIONS FOR LT-1390 LASER CUTTING ENGRAVING MACHINE
Working area
1300*900mm
Control system
Ruida RDC 6445G control system
Laser power
Reci W2(90w-100w) 90w Rated power 90w, Max. Power 100w
Software
Rdworks V8 software
Working table
Honeycomb table
Max. scanning precision
0.0254mm
Laser type
Co2 laser tube
Position precision
<0.01mm
Life of laser tube
8000-10000 hours
Communication interface
USB&PC
Engraving speed
0-1000mm/s
Mirror & lens
Imported from Singapore
Cutting speed
0-700mm/s
Net Weight
300KGS
Laser tube cooling
Water cooling
Power supply
110V/220V, 50/60HZ
Driver mode
Stepper motor and Leadshine driver (M580)
For Engraving
All non-metals
Transmission system
Taiwan HIWIN square rails and Fulong belt
For Cutting
Most non-metals, such as paper, acrylic,plywood, leather etc.
Design software
CorelDraw, AutoCAD, Photoshop etc.
Others
CW-3000,Exhaust fan, Air pump, Tool box, English Manuals etc.

Main Features

1). The "front" and "back" of our laser machine can be open, suitable for super-length material process.
2)Honeycomb and blade material worktable, which meet the needs of diversified laser procession

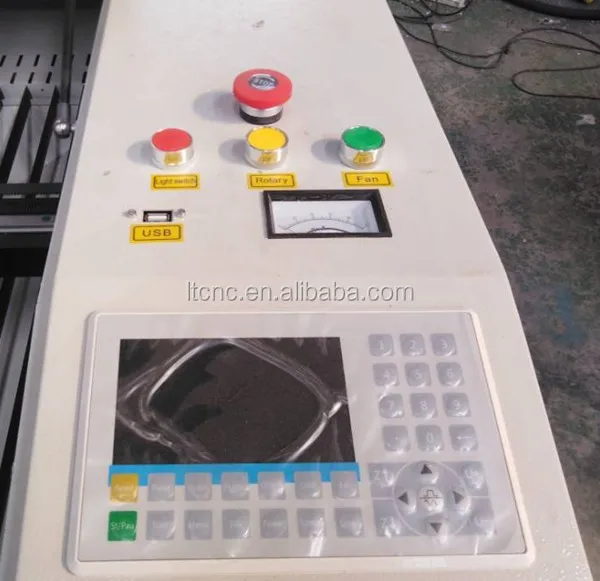

3). RED /LEETROcontrol panel in English, convenience of operation control.
4). Import guide rail with high engraving precision.
5). offline control system can not only work without computer, also connect to USB.
6). Imported lens and mirrors, with good ability of reflection and focusing, long working life.
7).Red light position system realizes the exact position and frame of machine is stable, ensure the precision .

Sample

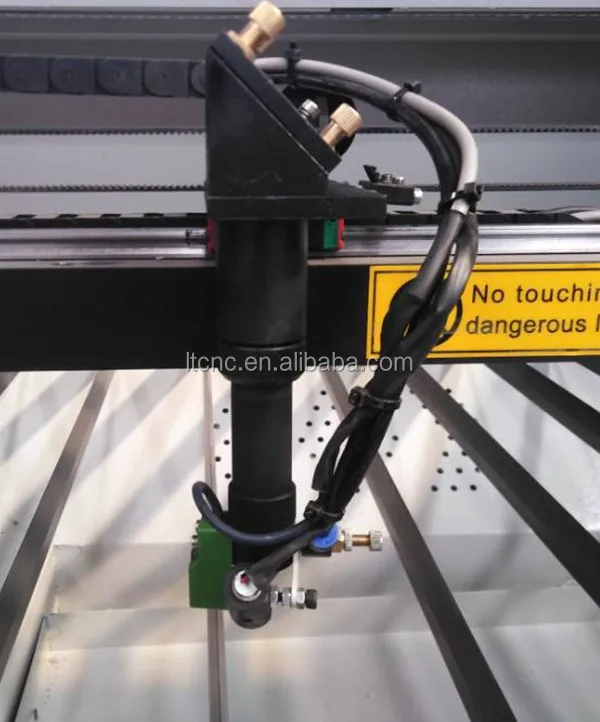

Detailed Images
Our Service

Technial service

1. We will supply with the machine operation manual in English version for installing and operation.

2.Customer can come to our factory training .

Warranty

1. Our warranty is 12 months counting from the date when the Machine arrives at the port of destination.

2. We will supply after service 24 hours,customer can contact us any time.

Packing & Delivery
Packaging
Size
198(L) *144 (W) * 122(Dcm
Weight
500kg



Packaging Details

The normal package is one

plywoodcase with water-proof materials

;co2 laser tube packaging separatedly.
Certifications
FAQ

1) This is the first time I use this kind of machine, is it easy operate?
There are english manual or guide video that show how to use machine.
If there is still have any question, we can talk from phone or skype.

2)Can you recommend a CNC ROUTER MACHINE to me,thanks?
Yes, In order to give you a suitable router machine, pls tell me the max working area, materials
for processing and the thickness for materials processing engraving or cutting. Then perfect suitable cnc router will be recommended

3) If machine have any problem after I ordered it, how could I do?
Free parts send to you in machine warranty period if machine have any problem.
Free after-sales service life for machine, please feel free contact us if your machine have any problem. we will give you 24hours service from phone and skype.

4) MOQ ?
Our MOQ is 1 set machine. We could send machine to your country port directly, please tell us your port name. There will be best shipping freight and machine price send to you

5)Payment terms
a. 30% by T/T in advance,70% bY T/T before shiping
b. L/C is acceptiable ,if the amount is big,please issue the draft for our confirmation at first.

6)Delivery terms
We will arrange the delivery as the terms we both agreed with after the confirmation by the buyer.
